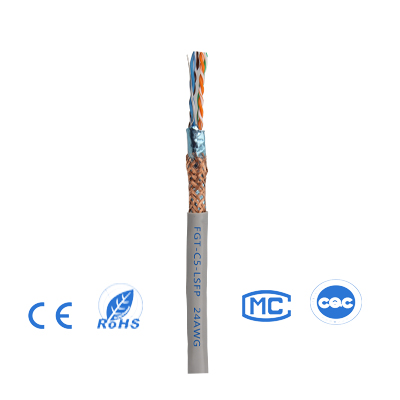

Cat.5e  SF/UTP CABLE LSZH are designed to support high-speed network transmission, reference standards: GB/T 50312, YD/T 1019, ISO/IEC 11801, ANSI/TIA-568.2-D.

Reference standards: GB/T 50312, YD/T 1019, ISO/IEC 11801, ANSI/TIA-568.2-D

Line pairs: 4 pairs (blue/blue white, orange/orange white, green/green white, brown/brown white)

Conductor: 24AWG solid oxygen-free copper conductor, which meets the requirements of TR type soft round copper wire

Supported bandwidth: 100MHz

Shielding structure: SF/UTP (aluminum foil + copper net total shielding)

Discharge line: tinned round copper wire

Insulation material: High Density polyethylene (HDPE)

Tear rope: non-hygroscopic, non-metallic

Sheath: LSZH

Sheath approximate outer diameter: 7.0±0.3mm

Operating temperature -20 ~ +60℃

Dc resistance (Max.) : 9.5Ω/100m

Characteristic impedance: 100±15Ω

Delay difference: ≤45ns/100m

Order information

PS:

Length optional: 300-500M

Color optional:Red, yellow, blue, purple, black, white, gray, green.
